Terminali di distribuzione MCCB/MCB serie DBK

Tempo: 2025-03-12

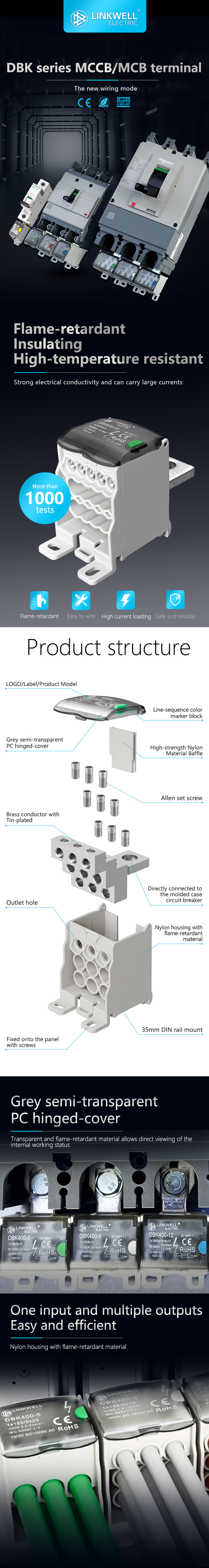

Efficient and Reliable Installation of LINKWELL DBK Series Distribution Terminals with MCCB/MCB

La serie di terminali di distribuzione LINKWELL DBK offre una soluzione versatile e affidabile per le installazioni elettriche, in particolare se abbinata a interruttori automatici in scatola stampata (MCCB/MCB). Questi terminali sono progettati per soddisfare le esigenze dei moderni sistemi elettrici, garantendo sicurezza, efficienza e facilità d'uso. Di seguito, esploriamo le caratteristiche principali e il processo di installazione dei terminali di distribuzione della serie LINKWELL DBK.

Key Features of LINKWELL DBK Series Distribution Terminals

  1. Wide Compatibility and Selectivity
    The LINKWELL DBK series is available in various specifications, making it compatible with most molded-case circuit breakers (MCCB/MCB) on the market. Its wide distribution range and strong distribution selectivity ensure flexibility for diverse applications.

  2. High-Quality Conductors
    The internal conductor is made of copper alloy with a tin-plated surface. This design ensures excellent conductivity, high current-carrying capacity, and superior corrosion resistance, making it ideal for long-term use in demanding environments.

  3. Line-Sequence Color Marker Blocks
    Each distribution terminal comes equipped with five line-sequence identification color marker blocks. These blocks help identify wire colors and sequences on the client side, effectively preventing phase-sequence errors during wiring. This feature is particularly useful in complex installations where accuracy is critical.

  4. Durable and Eco-Friendly Shell
    The terminal's shell is constructed from high-strength, environment-friendly, and flame-retardant nylon material. This ensures durability and safety while meeting modern environmental standards.

  5. Convenient Rail-Mounted Installation
    The terminals are designed for rail-mounted installation at the bottom, allowing for quick and hassle-free setup. The buckles are engineered to fasten firmly without tripping, ensuring a secure and stable installation.

  6. Design intuitivo
    The terminals feature a grey semi-transparent PC flip-cover, providing easy access to the wiring while maintaining a clean and organized appearance.


Processo di installazione

To assist users in the installation process, LINKWELL provides detailed video di installazione for both the MCCB/MCB terminal and the LINKWELL distribution terminal in combination with MCCB/MCB. These videos guide users step-by-step, ensuring a smooth and error-free setup.

  1. PREPARAZIONE
    Before installation, ensure that the appropriate LINKWELL DBK series terminal is selected based on the specifications of the MCCB/MCB and the application requirements.

  2. Rail-Mounted Installation
    Mount the terminal onto the rail using the bottom rail-mounted design. The buckles will securely fasten the terminal, preventing any movement or tripping during operation.

  3. Wiring and Color Coding
    Use the line-sequence color marker blocks to identify and match the wire colors and sequences. This step is crucial to avoid phase-sequence errors and ensure proper electrical connections.

  4. Securing the Flip-Cover
    Once the wiring is complete, close the grey semi-transparent PC flip-cover to protect the connections and maintain a neat installation.


LINKWELL DBK series distribution terminals are a robust and user-friendly solution for electrical installations involving MCCB/MCB. With features like high-quality conductors, line-sequence color marker blocks, and a durable nylon shell, these terminals ensure reliability and safety. The rail-mounted design and detailed installation videos further simplify the process, making it accessible even for less experienced users. Whether for industrial or commercial applications, the LINKWELL DBK series is a dependable choice for efficient and secure electrical distribution.
